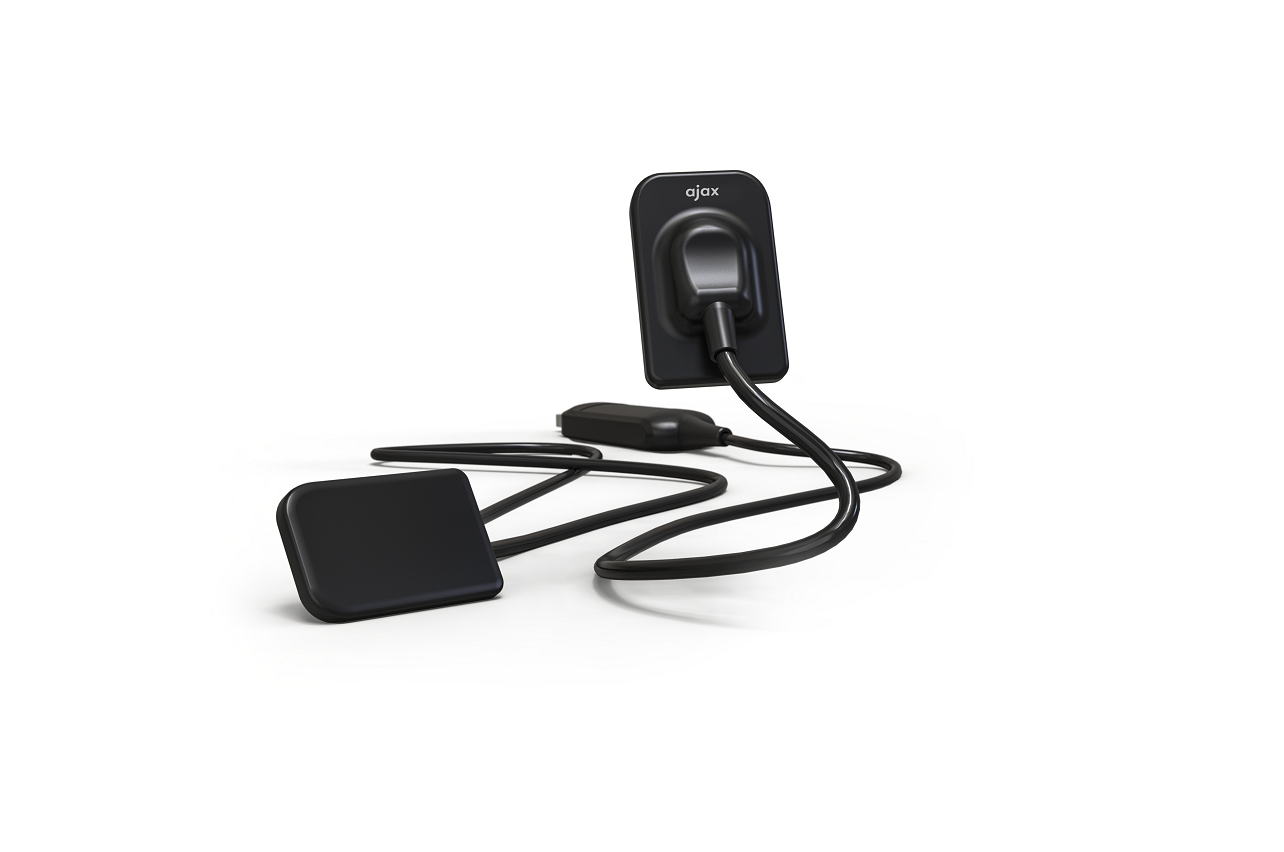

| Model | AJDR1 | AJDR1.5 | AJDR2 |
| Sensor Technology | CMOS | CMOS | CMOS |
| Scintillator | Cls | Cls | Cls |
| Pixel Size | 20 um | 20 um | 20 um |
| Resolution | 25 lp/mm | 25 lp/mm | 25 lp/mm |
| Gray Value | 16 bit | 16 bit | 16 bit |
| Number of pixels | 1000*1500px | 1200*1650px | 1300*1800px |
| Effective area | 0.79*1.18 in | 0.94*1.30 in | 1.02*1.42 in |
| Power By | 5V 500mA via USB | 5V 500mA via USB | 5V 500mA via USB |
| Cable Length | 8.86 ft | 8.86 ft | 8.86 ft |
| Ingress protection rating | IP 68 | IP 68 | IP 68 |
| Weight | 83g+10% | 83g+10% | 83g+10% |
| Xray Require | 60-70 kV, 1-8 mA | 60-70 kV, 1-8 mA | 60-70 kV, 1-8 mA |
| System | Windows 10 or above | Windows 10 or above | Windows 10 or above |
| Display | 1920*1080 or above | 1920*1080 or above | 1920*1080 or above |
Where can I buy ADS Dental equipment?
ADS Dental sells dental equipment only through the distribution network in each country. Please contact your local dealer of ADS Dental for quotation. Local organization is responsible for correct installation and service of ADS Dental equipment. Local teams have been trained and have all necessary certificates to correctly maintain our dental equipment
What is the life time of ADS equipment?
We, as manufacturer, declare life time of our systems as 10 years. However, even today, we have customers using 15 years old units, as they have been properly serviced and taken care of.
Who can service ADS equipment?
All our dealer’s network has been trained for proper service of our equipment. Each service technician obtains ADS certificate after service training, which allows him to install and service ADS dental equipment.
How long does it take to produce my dental unit?
After your order is confirmed, production time is in average 3-4 weeks. However, you need to calculate time for transport and installation.
Can I customize my unit if I have special request?
Yes, ADS is able to evaluate any of your special request. If it is technically possible, we create price offer for your customized solution and once you confirm, your dental unit can be produced based on your special customized request.
Wide backrest,cast aluminum backrest stand
Fully support the patient's back with ergonomic design. Butterfly shaped back offers wide space for doctors and enables you get as close to the patient as possible.
