Standard Features

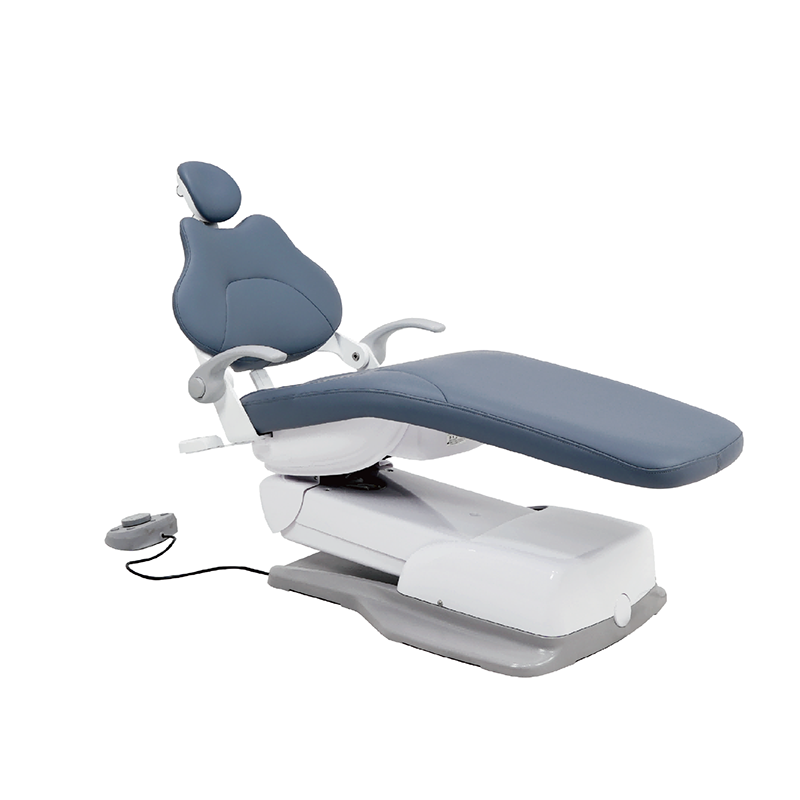

AJ16 Luxury hydraulic chair with 3 programmable positions,
Double articulating headrest,
Swing up/down armrest,
Cast iron chair frame,
Cast aluminum backrest stand,
Cast aluminum base,
60 degrees seat rotation, chair safety switch, Wide backrest, Upgraded fiber leather, One touchpad attached on armrest, Foot control
Technical Parameters
| Environmental requirements | Ambient temperature 41F～104F Humidity≤80% |
| Electrical requirements | AC110V±22V 50HZ, 60HZ |
| Hydraulic pump run time | Intermittent operation 2min On /18min Off |
| Weight | 366lbs |
| Max patient load | 550lbs |
Where can I buy ADS Dental equipment?
ADS Dental sells dental equipment only through the distribution network in each country. Please contact your local dealer of ADS Dental for quotation. Local organization is responsible for correct installation and service of ADS Dental equipment. Local teams have been trained and have all necessary certificates to correctly maintain our dental equipment
What is the life time of ADS equipment?
We, as manufacturer, declare life time of our systems as 10 years. However, even today, we have customers using 15 years old units, as they have been properly serviced and taken care of.
Who can service ADS equipment?
All our dealer’s network has been trained for proper service of our equipment. Each service technician obtains ADS certificate after service training, which allows him to install and service ADS dental equipment.
How long does it take to produce my dental unit?
After your order is confirmed, production time is in average 3-4 weeks. However, you need to calculate time for transport and installation.
Can I customize my unit if I have special request?
Yes, ADS is able to evaluate any of your special request. If it is technically possible, we create price offer for your customized solution and once you confirm, your dental unit can be produced based on your special customized request.
Wide backrest,cast aluminum backrest stand
Fully support the patient's back with ergonomic design. Butterfly shaped back offers wide space for doctors and enables you get as close to the patient as possible.
AJ18 Beyond | AJ16 Beyond | AJ15 | AJ12 | |
Drive System | Premium Synchronized Hydraulic | Smooth Hydraulic | Smooth Hydraulic | Precise Electromechanical |
Operating Smoothness | Premium Sliding-Rail Structure | Smooth Hydraulic Motion | Smooth Hydraulic Motion | Precise Motor Motion |
Motion Experience | Soft Start & Stop | Soft Start & Stop | Standard Start & Stop | Standard Start & Stop |
Chair at Lowest Point | 13.7" (350 mm) | 13.7" (350 mm) | 15" (380 mm) | 15.3" (390 mm) |
Chair at Highest Point | 31.5" (800 mm) | 31.5" (800 mm) | 30.7" (780 mm) | 31.5" (800 mm) |
Maximum Patient Weight | 550 lbs | 550 lbs | 550 lbs | 400 lbs |
Seat Rotation | 60° Swivel (30° each side) | 60° Swivel (30° each side) | — | Left/Right Convertible (Tool-free) |
Backrest & Headrest Design | Ultra-thin Metal Backrest / Push-button Dual-articulating Headrest | Ultra-thin Metal Backrest / Push-button Dual-articulating Headrest | Ultra-thin Comfort Backrest / Dual-articulating Headrest | Ultra-thin Comfort Backrest / Dual-articulating Headrest |
Chair Frame Structure | Heavy-duty Cast Aluminum with Sliding-Rail | Heavy-duty Cast Aluminum | Heavy-duty Cast Iron | Fabricated Steel |
Base Structure | Full Cast Aluminum Base (Rust-proof / High Rigidity) | Full Cast Aluminum Base (Rust-proof / High Rigidity) | High-quality Steel Base | High-quality Steel Base |
Control System | Smart 10-Key Control Panel | Smart 10-Key Control Panel | Standard Control Panel | Standard Control Panel |
Trendelenburg Position | Standard (✓) | Optional | — | — |
Upholstery Material | Luxury Nappa Leather | Upgraded Fiber Leather | Upgraded Fiber Leather | Upgraded Fiber Leather |
Therapy & Comfort Functions | Standard Heating & Massage (✓) | Optional Heating & Massage | — | — |
Target Clinic Type | Premium & Specialist Clinic | Advanced Multi-Doctor Clinic | High-Volume Practice | General Practice |
Please click the Settings button
A masterclass in structural durability and ergonomic accessibility.
